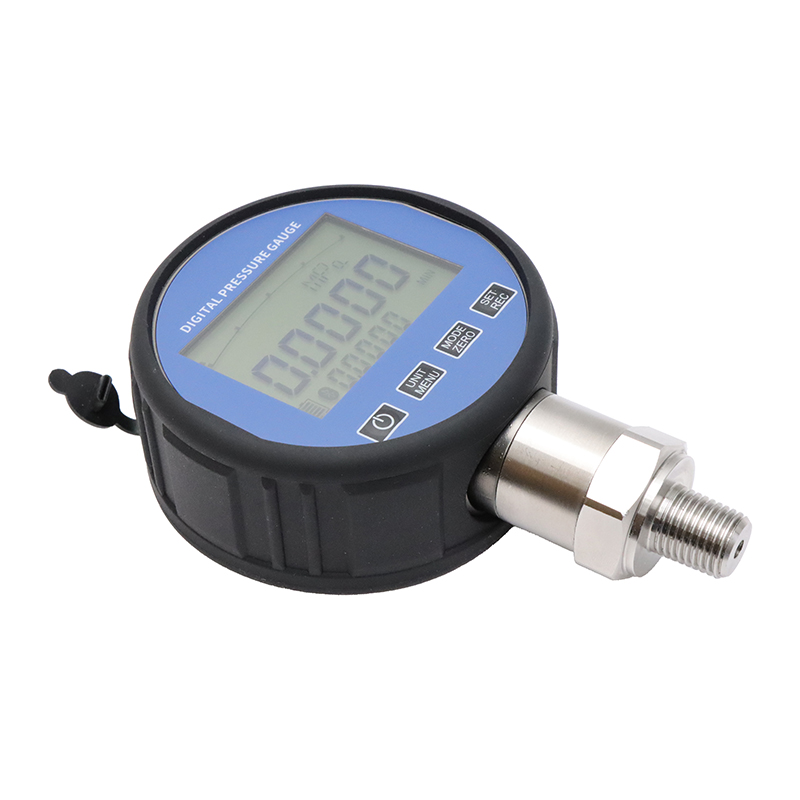

Digital Pressure and Temprature Gauge XY-PG211

Bluetooth APP Pressure & Temperature Data; Optional Accuracy 0.05%FS Type-C powersupply; Φ85mm

Bluetooth APP, Dial can be rotated 330° Standard Accuracy 0.1%FS, Optional Accuracy 0.05%FS; IP65(optional IP67)

Typical Feature

Cast Zinc Stainless Steel shell, dial diameter 85mm
Dial can be rotated 330°
IP65 protection and IP67 optional;
Accuracy level: Pressure 0.05%(optional)；0.1%;0.5%; Temperature 0.5oC
Can record 270,000 pieces of data, and the data can be exported through a computer or Bluetooth App
Powered by 3 pcs AA Battery power, type-C external power supply
Set up by Bluetooth APP
15 pressure multiunit switching

Brief Introduction
Suggested Applications
Specification
Document
Leave us Message

Digital Pressure and Temprature Gauge XY-PG211 Brief Introduction

XY-PG211 high-precision digital pressure gauge is a high-precision pressure gauge that can rotate 330° . It uses split-screen display on the main screen and the secondary screen. The main screen displays real-time pressure, and the split-screen displays the ambient temperature, maximum pressure, minimum pressure, and range. Range and other reference data.

XY-PG211 has powerful functions and can switch between multiple common pressure unit displays. The pressure collection rate is adjustable, and the collected data can be recorded and exported through a type-c data cable or Bluetooth function. Various parameters can be set through Bluetooth function or buttons.

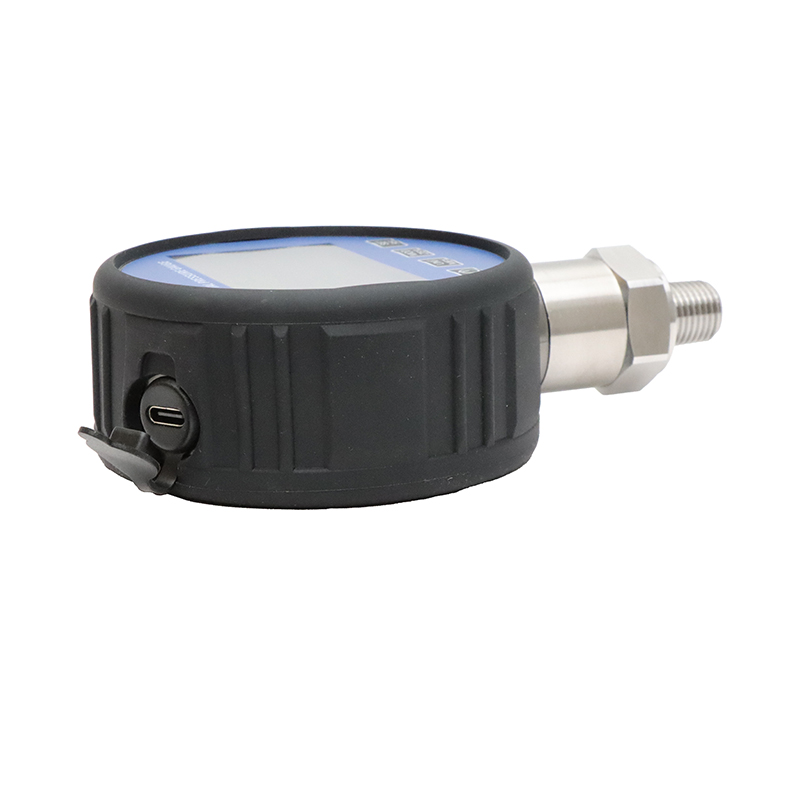

The device comes standard with type-c external power supply, optional type-c external power supply + 3 AAA batteries or type-c external power supply and rechargeable battery power supply, multiple power supply modes, more convenient to use long work time.

Suggested Applications

Digital Pressure and Temprature Gauge XY-PG211 Specification

Model	XY-PG211
Pressure Range	-0.1~0~2…0.1…1…10…70MPa, can customized range
Dimension	Diameter Ф85
Overload Capacity	150%
Measurement Medium	Gas or Liquid with Compatibility of SS 304
Accuracy Level	0.05%FS ;0.1%FS; 0.5%FS
Long-Term Stability/Year	Better than0.05% FS;
Operation Temperature	-10~60^oC; others temperature are customized
Compensation Temperature	0~40^oC
Sample Frequency	0.1-10 times/Second
Display	5 digits LCD, green backlit display
Data Record	10 records, each record can hold up to 27,000 data, totaling 270,000 data
Power Supply	3 cell 1.5V AA Battery or Type-C
Protection Class	IP65 protection and IP67 optional
Connection Joint	M20*1.5;G1/2 G1/4 or customized
