Pressure Transmitter XY-PTMT100

Probe-Shaped Pressure Sensor, Minimum Mounted Diameter Ф 3mm
Small size, IP65 or IP67 Ingress protection; used to the work condition is limited about test point size, or need keep flow distribution, offer customized types

Typical Feature

  • Small size Probe-Shaped design, minimum diameter Ф 3mm
  • High-precision maximum accuracy 0.25% FS
  • Temperature stability index 0.02%/FS/
  • Wield measurement field, even corrosion, easy to crystallize the medium
  • Stainless Steel material with fully sealed structure
  • Customized structure diversification is available

Pressure Transmitter XY-PTMT100 Brief Introduction

XY-PTMT100 Probe-Shaped Pressure Transmitter has minimum 3mm diameter. Special design and precision machining technology make them with excellent dynamic and static qualities; Stainless steel shell and laser-welded construction, IP65 or IP67 Ingress protection; the ultrathin and small size can be used to specific environment if the work condition is limited about test point size, or need to keep flow distribution. XUYAN offer customized type to against harsh rugged work condition by customer special requirements.

The Probe-Shaped Precision Pressure Transmitter use miniature pressure sensor with excellent performance such as high precision, fast response, small size, light-weight, stable and reliable, strong overload capacity; It is designed for most medium in industry, such as air, oil, water and other fluid; Micro pressure transmitter is mainly applied in the followed situations: aerodynamics, aircraft and engine experiment, wind tunnel experiment, hydromechanics experiment, hydraulic modeling experiment, biomedicine experiment, chemical explosive and nuclear explosive blast experiment; Output 4~20mA or 0~5VDC standard electrical signal through regulation device; Measurement Range: 0-5 KPa,0-100 KPa,0-1000KPa. With thoughtful specialized electric circuit design, it's easy to install in microprocessor intelligent control system; Calibrated by ultra-high precision absolute pressure calibration equipment; Accuracy reach to 0.2%; 0.5%; temperature stability index can be increased to 0.02%/FS/ by sensor temperature self-compensation and specialized circuit debugging.

Pressure Transmitter XY-PTMT100 Specification

Model XY-PTMT
100 200 300
Gauge Pressure Range 0-5KPa…100KPa…1000MPa 0-5KPa…100KPa…8000MPa Air pressure 0-20KPa, 0-200KPa
Others 0-1MPa…10MPa…50MPa…100MPa
Pressure Type Gauge Pressure Test
Measurement Medium Gas or Liquid with Compatibility of  SS 304 ,SS316 or Silicon
Accuracy  0.2%FS   0.5%FS additional conditioning circuit
Long-Term Stability/Year ±0.2%FS/Year
Zero Temperature Trift Typical: ±0.02%FS/℃;  Maximum ±0.05%FS/℃
Sensitivity Temperature Drift Typical: 0.02% FS / ℃;The biggest: 0.05% FS / ℃
Overload Pressure  200%
Operation Temperature -20~85℃
Compensation Temperature -20 ~ 80℃
Environmental Temperature -40 ~ 120℃
Power Supply 5VDC
Signal Output mV;  after conditioning 4~20mA, 0-5V after
Load Resistance ≤(U-6.5)/0.02A Ω
IP Protection Class IP65; IP67

Performance Parameter
Performance Parameter A B C D
Non-linear/±%FS 1.00 0.50 0.20 0.1
Non-redundant, hysteria /±%FS 0.20 0.15 0.10 0.04
Zero temperature coefficient/X10-4/oC.FS 5.00 3.00 2.00 1.00
Sensitivity temperature coefficient/X10-4/oC.FS 5.00 3.00 2.00 1.00
Zero time drift/%FS/8h 0.20 0.15 0.10 0.10
Accuracy%FS 1.00 0.50 0.25 0.15

Mode Size

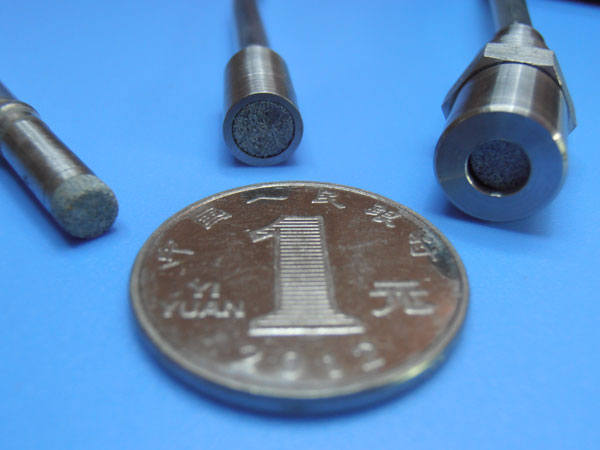

XY-PTMT100 Φ3mm-Φ8mm
XY-PTMT200 M5*1-M10*1
XY-PTMT300 Φ10*5mm-Φ30*10mm

PDF Download

File Name Online reading File download
Pressure Transmitter XY-PTMT100

More details for XY-PTMT100, please Contact Us.
