Wireless Pressure Gauge XY-PG281

5-Digits LCD; 0.2%FS/0.5%FS Accuracy 330 degree rotatable display dial plate,APP and Bluetooth conne

330^orotatable display dial plate, 0.2% FS and 0.5%FS ; applicated portable pressure measurement, equipment matching, calibration equipment and other pressure measurement fields

Typical Feature

330^o rotatable display dial plate
Large LCD screen, support reset, backlight
Bluetooth connection, APP collection and other functions
Accuracy level: Pressure 0.2% FS and 0.5%FS
Powered by 2 pcs of AA Battery power, standby time 12 Months
MAX&MIN value
Multi pressure multiunit switching
(MPa/bar/kgf/mH20/PSI/kPa/mmHg/mBAR/mmH20/Pa/inWC）

Contact

Brief Introduction
Suggested Applications
Specification
Document
Leave us Message

Wireless Pressure Gauge XY-PG281 Brief Introduction

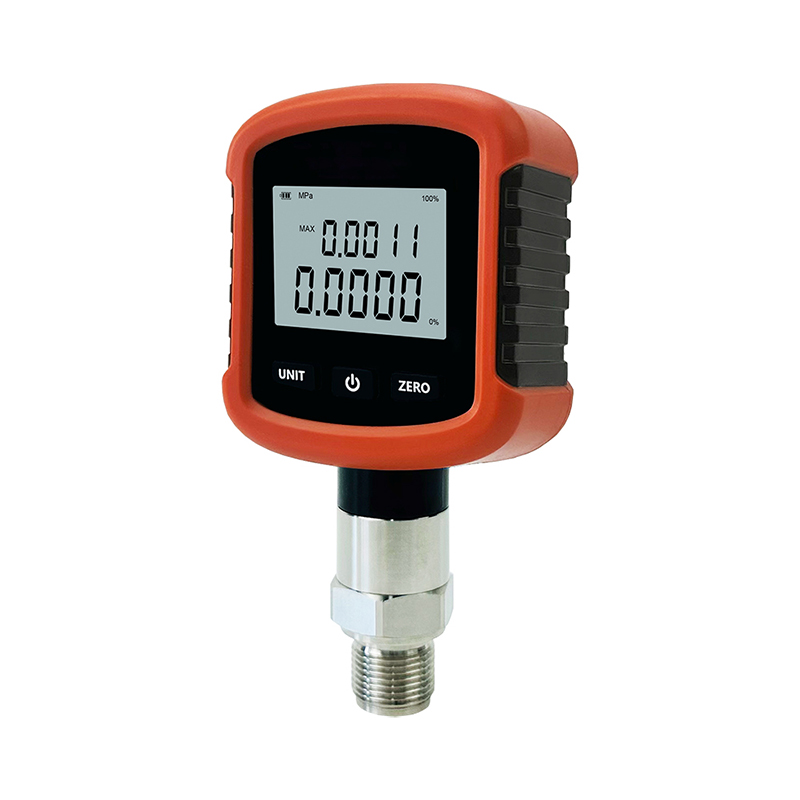

XY-PG281 is a digital pressure gauge with a built-in high-precision pressure, which can accurately display the pressure in real time, and has the characteristics of high precision and good long-term stability.

This digital pressure gauge is equipped with a large-size LCD,.

Which has multiple functions such as zero reset, backlight, power on and off, unit switching, low voltage alarm, etc. It is easy to operate and install. The dial orientation can be rotated 330°, which is convenient for customers to read from the desired angle. XY-PG281 product adopts the whole casing to be covered with rubber, which has good shock resistance and can measure gas, liquid, oil and other media that are not corrosive to stainless steel.

This series of products supports Bluetooth applets and APP configuration parameters, including: pressure value display, acquisition rate modification, reset operation and other settings.

XY-PG281 digital pressure gauge is suitable for portable pressure measurement, equipment matching, calibration equipment and other pressure measurement fields.

Suggested Applications

Wireless Pressure Gauge XY-PG281 Specification

Model	XY-PG281
Negative/compound pressure	-0.1~0...0.1...1.6MPa
Differential pressure	0~10...40...60kPa
Normal pressure	0~0.1...1.0...6MPa
High Pressure	0~10...25...60MPa
Overload pressure	120% (≥10MPa); 150% (<10MPa)
Appearance size	143.57540.5mm
Measurement Medium	oil, water, gas, etc. Non-corrosive medium
Accuracy Level	0.2%FS ;0.5%FS
Long-Term Stability/Year	Typical: 0.3%FS/year
Operation Temperature	-20 - 65°C
Compensation Temperature	0～60℃
Thread Connection	M20*1.5, G1/4 or customized
Connector material	304 SS
Shell material	TPE+ABS
Output Connection	Bluetooth connection
Working Humidity	<85%
Display	4 digits LCD, white backlit display
Protection class	IP54
Power Supply	Battery 3V
