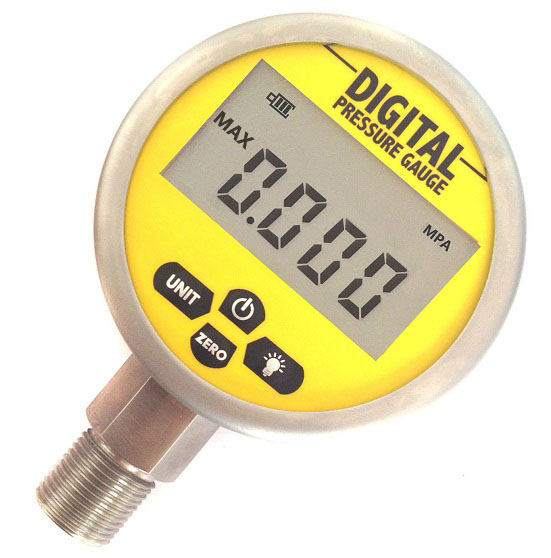

Digital Pressure Gauge XY-PG280F

4-Digits LCD; Record Peak Value Of Pressure; Φ80mm Dial
SS304 shell, Standard Accuracy 0.2%FS&0.4%FS; applicated in water, oil, air and other liquids pressure measurement

Typical Feature

  • Stainless steel 304 shell, dial diameter 80mm
  • 4-Digits LCD with white backlight
  • Low power design, optional battery and power supply
  • Accuracy level: Pressure 0.2%;0.4%
  • Pressure range -0.1~0...0.01…0.1…1.6…10…160MPa
  • With more customized types for option

Digital Pressure Gauge XY-PG280F Brief Introduction

XY-PG280F is a high Precision Digital Pressure Gauge, which is built-in high accuracy pressure sensor. The sampling frequency can be maximum 50 times/second. It displays real-time pressure at short response time, the typical characteristics are high accuracy and excellent long-term stability.

The digital pressure gauge has LCD display with 4 digits numbers. There are 4 buttons on the front panel to control zero clearing, backlit display, Power On/Off, Unit converting, low voltage alarm and record Maximum and Minimum pressure data. It is easy to install in pipeline, Isolation tank or others connects device, easy to set up operating parameter. Working condition is -5~40 , it should be cold once working condition temperature more than 60, -20~150 are customized.

It has 304 stainless steel shell and joint, can be used in measuring gas, liquid, oil and others medium without corrosion for stainless steel, at the same time its shock resistance is very good, especially for recording pressure measurement peak value of tire pressure, oil pressure and spray machine.

XY-PG280F digital pressure gauge is powered by 2 batteries (AA), with low power consumption and long duration.

There are three pressure measurement types: Gauge Pressure, Vacuum Pressure and Absolute Pressure
machinal joint include Thread, Flush Diaphragm, Clamp, Flange, Radiator and Differential Two-way Fitting.

Digital Pressure Gauge XY-PG280F Specification

Model

XY-PG280

Vacuum Pressure Range

0~-100KPa

Absolute Pressure Range

0…160…250…400KPa;0...1Mpa.

Composite range

(-0.1~0.1)MPa  (-0.1~0.25)MPa (-0.1~0.4)MPa  (-0.1~0.6)MPa (-0.1~1.0)MPa  (-0.1~2.5)MPa
(-5~5)KPa   (-10~10)KPa   (-25~25)KPa   (-50~50)KPa

Gauge Pressure Range

(0~160)kPa (0~250)kPa  (0~400)kPa (0~600)kPa (0~1)MPa (0~1.6)MPa ...(0~100)MPa

Micro-pressure Range

 (0~5)kPa   (0~10)kPa (0~25)kPa  (0~50)kPa  (0~100)kPa

High pressure Range

(0~100)MPa  (0~160)MPa  (0~200)MPa

Pressure Type

Gauge Pressure Test ,Absolute Pressure Test, Vacuum Pressure Test

Dimension

Φ80mm; Thickness 48mm

Overload Capacity

≤10MPa  200%; >10MPa 150%

Measurement Medium

Gas or Liquid with Compatibility of  SS 304

Accuracy Level

0.5%FS

Long-Term Stability/Year

Typical: ±0.25% FS

Operation Temperature

-20~60℃ ;-20_200 are customized

Compensation Temperature

0~60℃

Working Humidity

<85%

Display

4 digits LCD, white backlit display



Power Supply

24VDC, 220VAC are optional
