Digital Pressure Gauge XY-PG200

5-Digits LCD; Optional Accuracy 0.1%FS; Standby:10,000 Hours; Φ100mm
SS304 shell, Standard Accuracy 0.2%FS, Optional Accuracy 0.1%FS ; Wield used in high precision pressure measurement

Typical Feature

  • 304 stainless steel frosted shell, dial diameter 100mm
  • With pressure scale bar, indicating the current pressure percentage
  • 5-digits display with high resolution
  • Accuracy level: 0.4, 0.2, 0.1 Class (optional)
  • Powered by 3 pcs of AA Battery power, standby time 18-24 months
  • Record maximum and minimum pressure data
  • 13 pressure multiunit switching (Mpa, Kpa, Pa, PSI, Bar, KGF /cm2, Kbar, Mbar, InH₂O, mmHg, lorr, ATM, mmH₂O)
  • One key reset to Zero
  • USB and battery dual power supply
  • Strong media compatibility, water, oil, gas and other medium without corrosion in stainless steel

Digital Pressure Gauge XY-PG200 Brief Introduction

XY-PG200 is a high precision digital pressure gauge, which was built-in high accuracy pressure sensor, it displays real time pressure data at short response time, the typical characteristics are high accuracy and excellent long-term stability.

The digital pressure gauge has a large size LCD display with 5 digits numbers. There are 4 buttons on front panel to control zero clearing, backlit display, switching machine, unit converting, low voltage alarm, peak value recording, etc.

It is easy to install in pipeline, Isolation tank or others connects device, easy to set up operating parameter. It's should be cold once working condition temperature more than 60oC.

It has 304 stainless steel and joint, can be used in measuring gas, liquid, oil and other medium without corrosion for stainless steel, at the same time its shock resistance is very good.

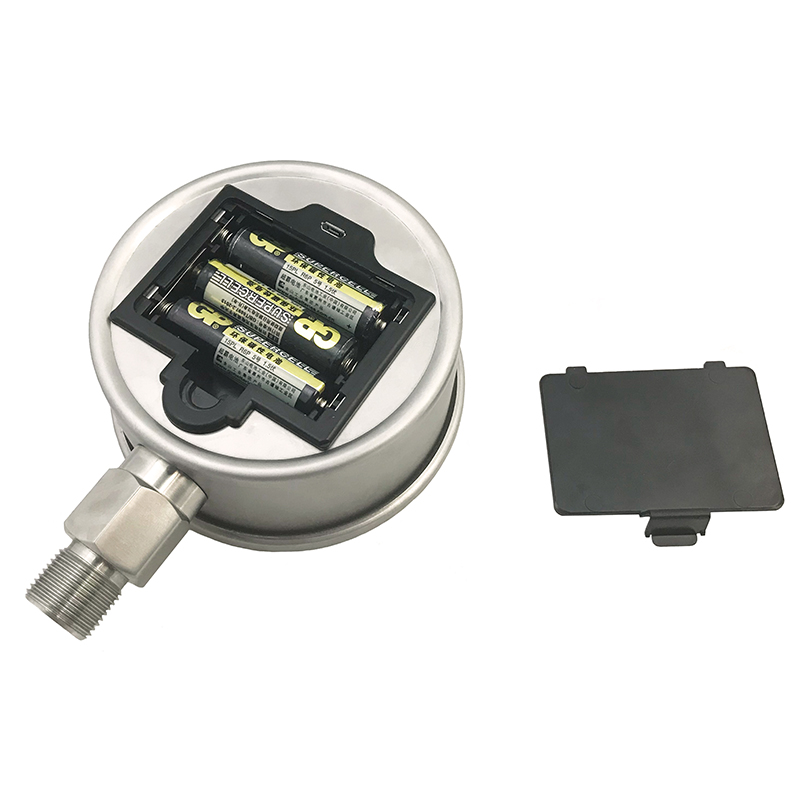

XY-PG200 digital pressure gauge is powered by 3 batteries (AA) or USB connector, with low power consumption and long duration.

There are three pressure measurement types: Gauge Pressure, Vacuum Pressure and Absolute Pressure machinal joint include Thread, Flush Diaphragm, Clamp, Flange, Radiator and Differential Two-way Fitting.

Digital Pressure Gauge XY-PG200 Specification

Model XY-PG200
Vacuum Pressure Range 0~-100KPa
Absolute Pressure Range 0…160…250…400KPa;0...1Mpa.
Composite range  (-0.1~0.1)MPa  (-0.1~0.25)MPa (-0.1~0.4)MPa  (-0.1~0.6)MPa (-0.1~1.0)MPa  (-0.1~2.5)MPa
(-2.5~2.5)(-5~5)kPa   (-10~10)kPa   (-25~25)kPa   (-50~50)kPa
Gauge Pressure Range (0~160)kPa (0~250)kPa  (0~400)kPa (0~600)kPa (0~1)MPa (0~1.6)MPa ...(0~60)MPa
Micro-pressure Range (0~2)kPa  (0~5)kPa   (0~10)kPa (0~25)kPa  (0~50)kPa  (0~100)kPa
High pressure Range (0~100)MPa  (0~160)MPa  (0~200)MPa
Pressure Type Gauge Pressure Test ,Absolute Pressure Test, Vacuum Pressure Test
Dimension Diameter Ф105
Overload Capacity ≤10MPa  150%; >10MPa 120%
Measurement Medium Gas or Liquid with Compatibility of  SS 304
Accuracy Level 0.1%FS  0.2%FS   0.4%FS
Long-Term Stability/Year Typical: ±0.2% FS;
Operation Temperature -5~40℃ ;-20_200 are customized
Compensation Temperature 0~40℃
Sample Frequency  3 times/Second
Display  5 digits LCD, white backlit display
EMC EN61326
Data Record  EEPROM, with Peak value record
Power Supply 4.5V by Battery or USB
