High Speed Magnetic Angle Encoder IC

The latest generation of high-performance magnetic angle encoder IC

Typical Feature

Angle detection accuracy within ±0.5°, the delay of the entire system is reduced to within 2 microseconds, supporting a maximum speed of 25000 rpm
The maximum resolution of the incremental ABZ output can reach 4096 lines, which can replace the traditional 2500 line photoelectric encoder
Recommended applications: closed-loop stepper motor control, industrial servo motor control and other high-performance fields

Brief Introduction
Suggested Applications
Specification
Document
Leave us Message

High Speed Magnetic Angle Encoder IC Brief Introduction

Product details
XVYAN's latest generation of high speed magnetic angle encoder IC with powerful signal processing circuits can achieve the angle accuracy to less than ±0.5°, and can reduce the whole system propagation delay to less than 2μs, thus it can support up to 25,000 rpm rotation speed. The resolution of incremental ABZ output can be up to 4096 lines, which can replace the traditional 2500 lines optical encoder in industrial servo application. It can save much cost for customers and significantly improve the reliability.*For related technical support documents, please refer to the [Technical Support] page.

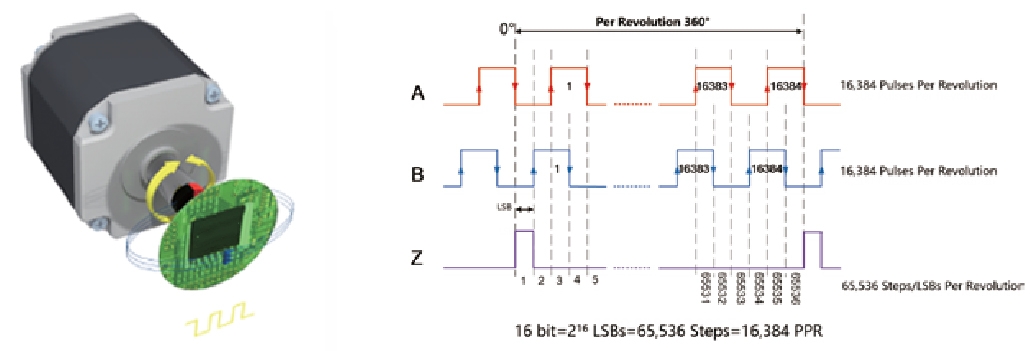

Working principle

Product list

Part Number	Supply Voltage (VDD)	Temperature Range	Out Propagation Delay	Maximum Resolution Speed	ABZ Output	UVW Output	PWM Output	SPI Output	Available Packages
XY6835	3.3~5.0 V	-40~125℃	2us~10us	<120,000 rpm	1~16384 arbitrarily programmable	1-16 pairs of poles can be arbitrarily programmable	12bit	21bit	TSSOP-16
XY6825	3.3~5.0 V	-40~125℃	<2us	<25,000 rpm	1~4096 Pulses Programmable	1-16 Pole Pairs Programmable	12bit	18bit	TSSOP-16
XY6701	3.3~5.0V	-40~125℃	<5us	<55,000 rpm	1~1024 arbitrary programmable	1~16 Pole Pairs Programmable	12bit	14bit	SOP-8，QFN3x3-16L
XY6816	3.3~5.0 V	-40~125℃	<2us	<25,000 rpm	1~1024 Pulses Programmable	1~16 Pole Pairs Programmable	12bit	14bit	SOP-8

High Speed Magnetic Angle Encoder IC

Typical Feature

High Speed Magnetic Angle Encoder IC Brief Introduction

Product list

Suggested Applications

More details for , please Contact Us.
