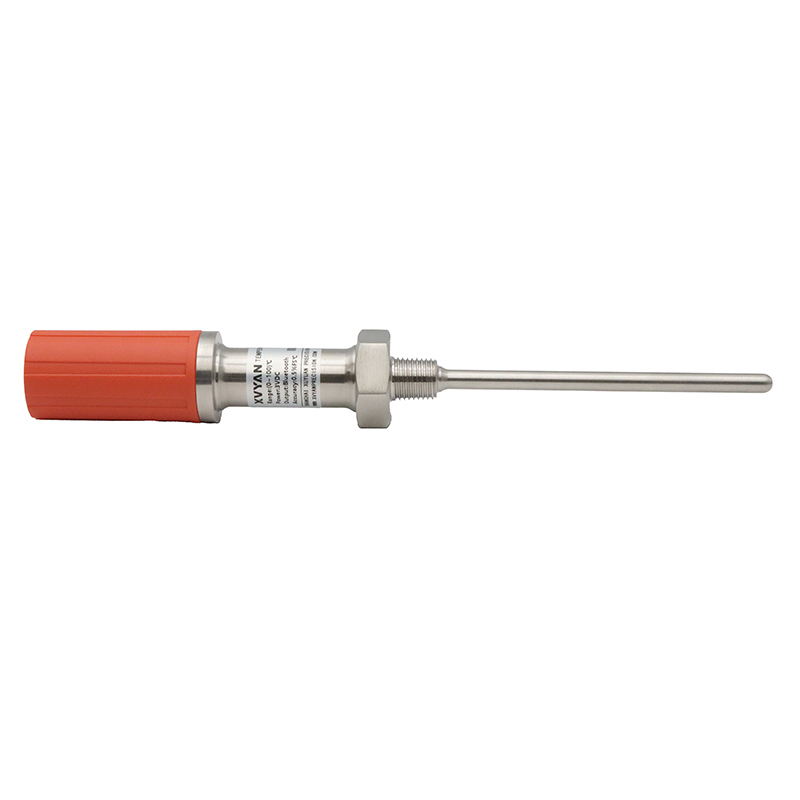

Wireless Bluetooth Temperature Sensor XY-PT331

ompact size100mm length,high accuracy0.3℃（≤200℃） 0.5℃（＞200℃）, long transmission distance more than 20meter and Standby power consumption less ＜5uA

Typical Feature

Ultra-small volume, main length < 100mm
Accuracy level: 0.3℃（≤200℃） 0.5℃（＞200℃）
Bluetooth transmission, the maximum distance is over 20 meters
Multiple functions: unit switching, zero reset, adjustable sampling rate
Powered by lithium battery, battery life up to 12 months, easy to replace
With data viewing and EXCEL data export function
Support Bluetooth configuration and cooperate with Bluetooth gateway to configure remote parameters, reducing maintenance cost

Contact

Brief Introduction
Suggested Applications
Specification
Document
Leave us Message

Wireless Bluetooth Temperature Sensor XY-PT331 Brief Introduction

XY-PT331 series of wireless Bluetooth temperature transmitters use PT100 temperature sensor as the temperature sensing element, combined with ultra-low power Bluetooth communication module and

digital conditioning circuit, making it highly accurate, low power consumption, compact, easy to use, and easy to install on site.

XY-PT331 supports multiple functions and supports mobile phone viewing and data export. You can download the Smart Gauges APP to connect to the wireless sensor with the mobile phone Bluetooth to view data and parameter configuration at close range. You can choose to use a Bluetooth gateway, which can be transferred to the cloud through the gateway; or use Ethernet to transmit to the local server, or RS485 to transmit to the PLC, etc.

Suggested Applications

Wireless Bluetooth Temperature Sensor XY-PT331 Specification

Model	XY-PT331
Range	-50~300℃ customized（eg：-50~100℃ 0~200℃）
Accuracy Level	0.3℃（≤200℃） 0.5℃（＞200℃）
Output Single	Bluetooth
Transmission distance	> 20 meters (open)
Power supply	CR 2032 button battery
Standby current	<5uA
Long-term stability	Better than ±0.25%FS/year
Mounting interface	M20*1.5 G1/4 NPT1/4 or Customized
Probe material	304SS
Housing material	PA66
Anti-Radio Frequency Interference	>10V/M(80MHz~1000MHz)
IP Protection Class	IP65
