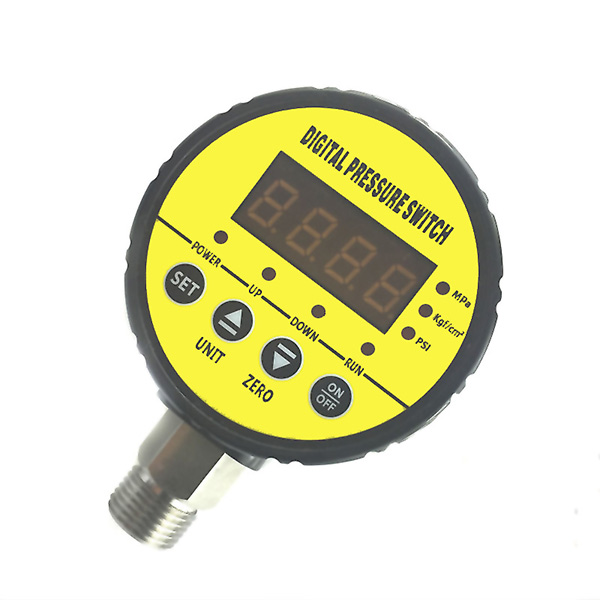

Digital Pressure Controller XY-PC800V

4-Digits LED, Φ80mm Plastic Shell; One Relay, Output Signal NONC; Set Alarm Point In Whole Measureme

Intelligent Pressure display and control, alternative for Mechanical Pressure Switch and Gauge together, wield in Industry applications such as Vacuum Pump, Vacuum Equipment, Vacuum Control System, Alternative Vacuum Pressure Meter Switch

Typical Feature

Plastic shell, dial diameter Ф80mm
4-Digits LED Display,
Multi-unit convert MPa/Kgf/cm2/PSI
Measurement range -120KPa~0
Accuracy level:0.5%FS
Power supply 12 or 24VDC; Optional 220VAC
Relay output signal NONC
High precision, quick response time, stable and easy setting up

Contact

Brief Introduction
Suggested Applications
Specification
Document
Leave us Message

Digital Pressure Controller XY-PC800V Brief Introduction

XY-PC800V is an Intelligent Vacuum Digital Pressure Controller, with 80mm diameter Plastic shell, integrating Vacuum pressure measurement, display and control function. It has a variety of excellent functions, such as one-button reset, Multi-pressure Unit Converting and it's easy to reset setting, adjusting and installation.

This series of digital pressure controller has one relay, which can be set up normally open and normally closed; these alarm points to control high and low pressure of air or liquid, in addition, it is with one key reset, at the same time, calibration, shifting display unit, setting return difference and others option functions.

The intelligent pressure controller is equipped with high-precision instrument amplifier to amplify pressure signal, built-in temperature compensation sensor, is the high precision equipment for detecting and monitoring pressure, strong anti-electromagnetic interference (EMI), surge protection, reverse protection and so on.

XY-PC800V Intelligent Digital Pressure Controller can be widely used in Vacuum Pump, Vacuum Equipment, Vacuum Control System, Alternative Vacuum Pressure Meter Switch, Alternative Mechanical Vacuum Switch.

Suggested Applications

Digital Pressure Controller XY-PC800V Specification

Model	XY-PG800V
Vacuum Pressure Range	-120~0KPa
Overload Capacity	200%
Measurement Medium	Gas or oil or other Liquid with Compatibility of SS 304 or 316
Accuracy Level of Display	0.1KPa
Accuracy Level of Control	1KPa
Sampling frequency	5times/second
Alarm Point	Any pressre @-3KPa~-120KPa
Output	Relay; NONC
Relay Capacity	220VAC 5A; 24VDC 5A(able to drive <750W Motor)
Electric protection	Short-circuit protection; Reverse connect protection; EMC
Display	4 digits LED
Operating temperature	-20~80oC
Compensation	-10~60oC
Power Supply	24VDC or 220VAC and 380VAC are optional
