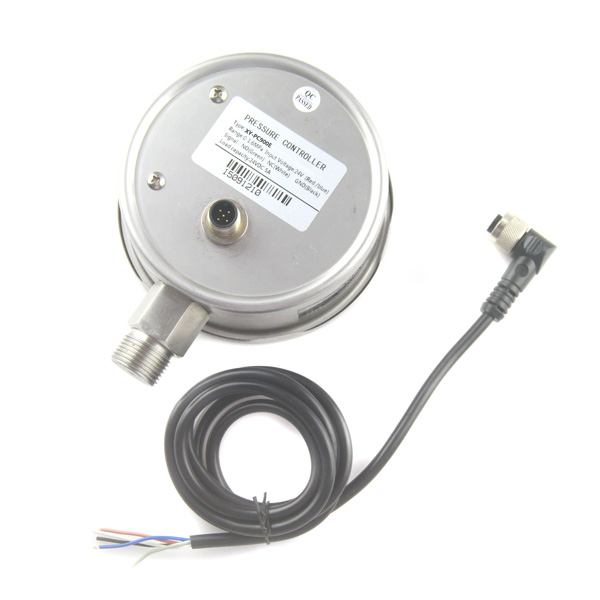

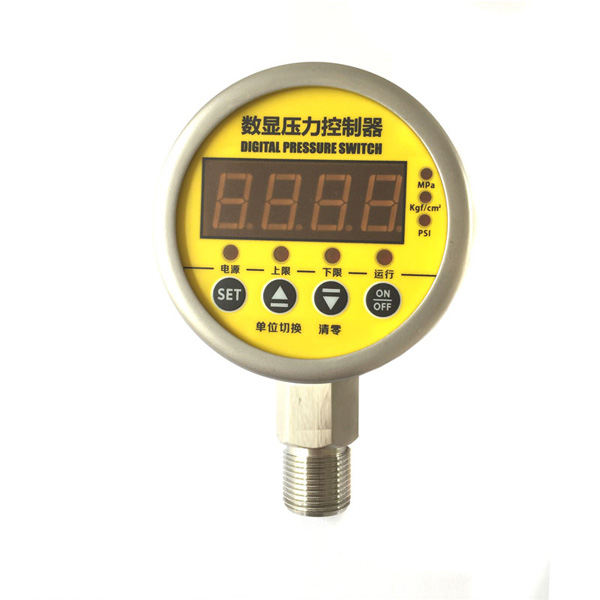

Digital Pressure Controller XY-PC900E

4-Digits LED, Φ100mm Stainless Steel Shell; One Relay, Output Signal NONC; Set Alarm Point In Whole

Intelligent Pressure display and control, alternative for Mechanical Pressure Switch and Gauge together, wield in Industry applications such as Automatic System, Mobile Working Machines, Medical Equipment, Pump, Compressor, Energy and Water Treatment, Agricultural Equipment, Test System, Hydraulic System and Pneumatic System

Typical Feature

Stainless steel 304 shell, dial diameter Ф100mm
4-Digits LED Display,
Multi-unit convert MPa/Kgf/cm2/PSI
Accuracy level:0.5%FS
Power supply 12 or 24VDC; Optional 220VAC
Relay output signal NONC
High precision, quick response time, stable and easy setting up

Contact

Brief Introduction
Suggested Applications
Specification
Document
Leave us Message

Digital Pressure Controller XY-PC900E Brief Introduction

XY-PC900E is an Intelligent Digital Pressure Controller, with 100mm diameter stainless steel shell, integrating pressure measurement, display and control function. It has a variety of excellent functions, such as one-button reset, Multi-pressure Unit Converting and it's easy to reset setting, adjusting and installation.

This series of digital pressure controller has one relay, which can be set up normally open and normally closed; these alarm points to control high and low pressure of air or liquid, in addition, it is with one key reset, at the same time, calibration, shifting display unit, setting return difference and others option functions.

The intelligent pressure controller is equipped with high-precision instrument amplifier to amplify pressure signal, built-in temperature compensation sensor, is the high precision equipment for detecting and monitoring pressure，strong anti-electromagnetic interference (EMI), surge protection, reverse protection and so on.

XY-PC900E Intelligent Digital Pressure Controller can be widely used in Automatic System, Mobile Working Machines, Medical Equipment, Pump, Compressor, Energy and Water Treatment, Agricultural Equipment, Test System, Hydraulic System and Pneumatic System.

Suggested Applications

Digital Pressure Controller XY-PC900E Specification

Model	XY-PG900E
Gauge Pressure Range	0…0.2…0.6…1.0…1.6…2.5…5…10…25…40…60…100…160MPa
Gauge Pressure Range	0~1…10…16…25…50…100…250…400…600…160Bar
Mirco Pressure Range	0~5…10…25…50…100KPa
Vacuum Pressure Range	-100~0KPa
Overload Capacity	≤100Bar 200%; >100Bar 150%
Measurement Medium	Gas or oil or other Liquid with Compatibility of SS 304 or 316
Accuracy Level	0.5%FS;
Long-Term Stability/Year	Typical: ±0.5% FS;
Sampling frequency	5times/second
Alarm Point	Any pressre @whole measurement range
Output	Relay; NONC
Relay Capacity	220VAC 5A; 24VDC 5A(able to drive <750W Motor)
Electric protection	Short-circuit protection; Reverse connect protection; EMC
Display	4 digits LED
Operating temperature	-20~80oC
Compensation	-10~60oC
Power Supply	12/24VDC or 220VAC and 380VAC are optional
