Digital Pressure Gauge XY-PG380

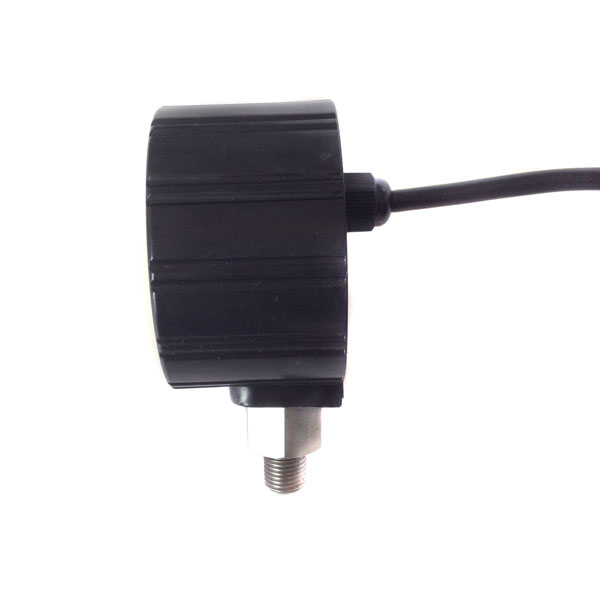

4-Digits LED; Good Shock Resistance; Lower Mount; Φ80mm Dial Plastic Shell
Panel mount plastic shell, Standard Accuracy 0.5%FS; Good shock resistance to alternative Mechanical Pressure Gauge in High vibration, frequent pressure shock work condition

Typical Feature

  • High performance engineering plastic shell, dial diameter 80 mm
  • With 4-digits LED Display.
  • Accuracy level: Pressure 0.5%
  • Wield measurement pressure range(0-60MPa), or customized
  • Powered 12VDC,24VDC or 220VAC and 380 are optional
  • Multi pressure multiunit switching (PSI/Kg.F/cm²/MPa)
  • One key reset to Zero
  • Strong media compatibility, water, oil, gas and other medium without corrosion in stainless steel

Digital Pressure Gauge XY-PG380 Brief Introduction

XY-PG380 is an Economic Digital Pressure Gauge, which is built-in high accuracy pressure sensor. It displays real-time pressure at a short response time. The typical characteristics are high accuracy and excellent long-term stability, designed for pressure container, Air Compressor, Automated Machine, Heat Pump Industry, it's a very good alternative for Mechanical Pressure Gauge.

The digital pressure gauge has an LED display with 4-Digits. There are 2 buttons on the front panel to control Reset, Unit converting. It is easy to install in Pipeline, Isolation Tank or others connects device, easy to set up operating parameter. Working condition is -20~80.

It has 304 stainless steel connect joint, can be used in measuring gas, liquid, oil and other medium; it is very good shock resistance and long working life.

XY-PG380 Digital Pressure Gauge is powered by12VDC or 24VDC; 220VAC and 380VAC are optional.

There are wield measurement range 0~160MPa, other measure ranges is optional. Machinal joint include Thread, Flush Diaphragm, Clamp, Flange, Radiator and Differential Two-way Fitting.

Digital Pressure Gauge XY-PG380 Specification



Gauge Pressure Range


Pressure Type

Gauge Pressure Test


Diameter Ф80

Overload Capacity


Measurement Medium

Gas or oil or other Liquid with Compatibility of  SS 304

Accuracy Level


Long-Term Stability/Year

Typical: ±0.5% FS;

Sample Frequency

5 times/Second


4 digits LED

Operating temperature


Compensation Temperature


Power Supply

12VDC,24VDC or 220VAC and 380 are optional



PDF Download

File Name Online reading File download
Digital Pressure Gauge XY-PG380

More details for XY-GP3G80, please Contact Us.
