Digital Pressure Gauge XY-PG380Z

4-Digits LED Easy Read In Dark; Good Shock Resistance; Panel Mount; Φ80mm Dial
SS304 shell, Standard Accuracy 0.5%FS; Good shock resistance to alternative Mechanical Pressure Gauge in High vibration, frequent pressure shock work condition

Typical Feature

  • Dial diameter 80 mm, Panel Mount
  • With 4-Digits LED Display.
  • Accuracy level: 0.5% FS
  • Wield measurement pressure range(0~160MPa), or customized
  • Powered 12VDC or 24VDC; 220VAC and 380VAC are optional
  • Multi pressure multiunit switching (PSI/Kg.F/cm²/MPa)
  • One key Reset

Digital Pressure Gauge XY-PG380Z Brief Introduction

XY-PG380Z is Panel Mount Digital Pressure Gauge with LED Display, which is built-in high accuracy pressure sensor. It displays real-time pressure at short response time, the typical characteristics are high accuracy and excellent long-term stability, designed for Pressure Container, Air Compressor, Automated Machine and Heat Pump Industry, it's a very good alternative for Mechanical Pressure Gauge.

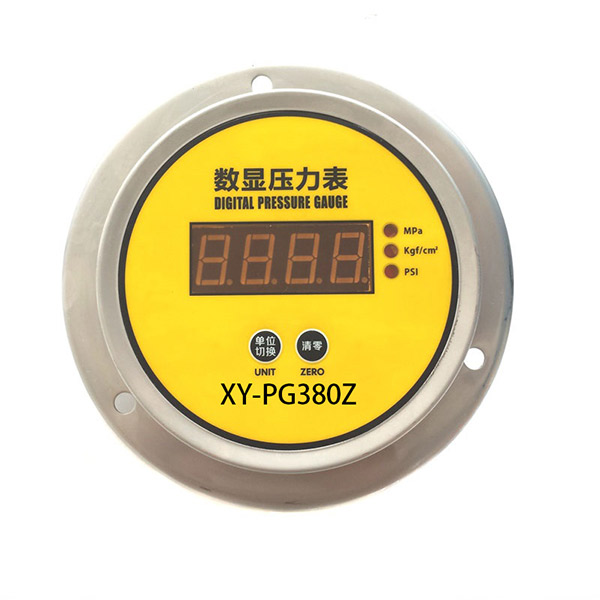

The Digital Pressure Gauge has LED display with 4-Digits. There are 2 buttons on the front panel to control Reset, unit converting. It is easy to install in Pipeline, Isolation Tank or others connects device, easy to set up operating parameter. Working condition is -20-80.

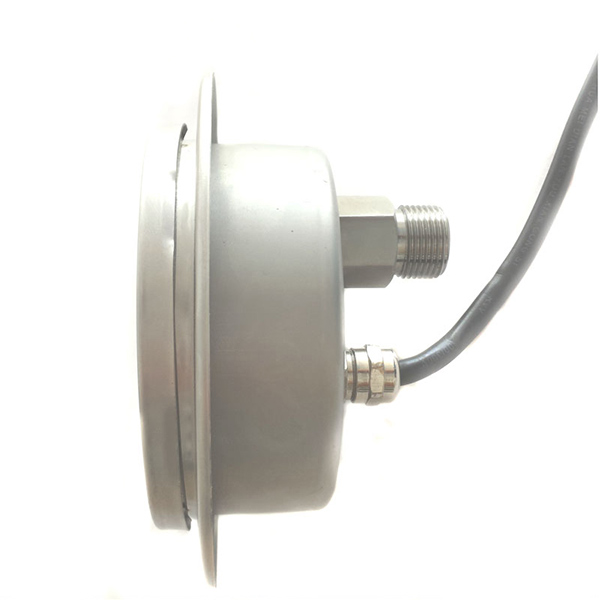

It has 304 stainless steel shell and connect joint, can be used in measuring gas, liquid, oil and other medium it has very good shock resistance and long working life.

XY-PG380Z Digital Pressure Gauge is powered by 12VDC or 24VDC, 220VAC and 380VAC are optional. There are wield Measurement Range 0~160MPa, other measurement range are optional. Machinal joint include Thread, Flush Diaphragm, Clamp, Flange, Radiator and Differential Two-way Fitting.

Digital Pressure Gauge XY-PG380Z Specification

Model XY-PG380Z
Gauge Pressure Range 0…100KPa…1MPa…1.6…5…10…25…40…160MPa
Pressure Type Gauge Pressure Test
Dimension Diameter Ф80
Overload Capacity 150%
Measurement Medium Gas or oil or other Liquid with Compatibility of SS 304
Accuracy Level 0.5%FS;
Long-Term Stability/Year Typical: ±0.5% FS;
Sample Frequency 5 times/Second
Display 4 digits LED
Operating temperature -20~80
Compensation Temperature -10~60
Power Supply 12VDC,24VDC or 220VAC and 380VAC are optional
Power ≤0.5W
