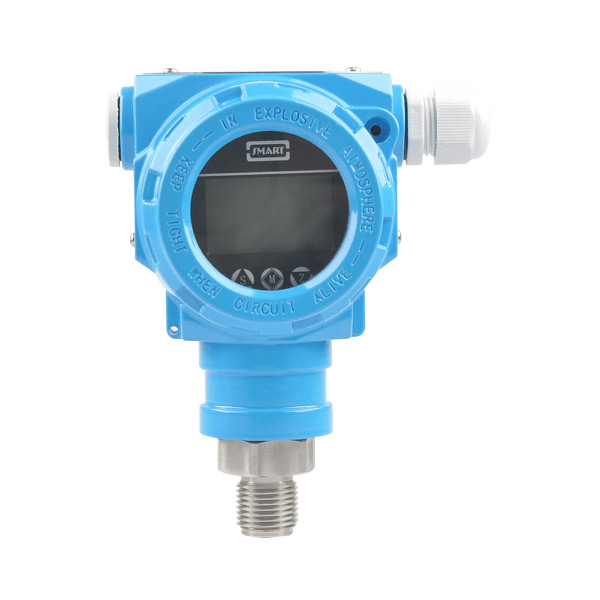

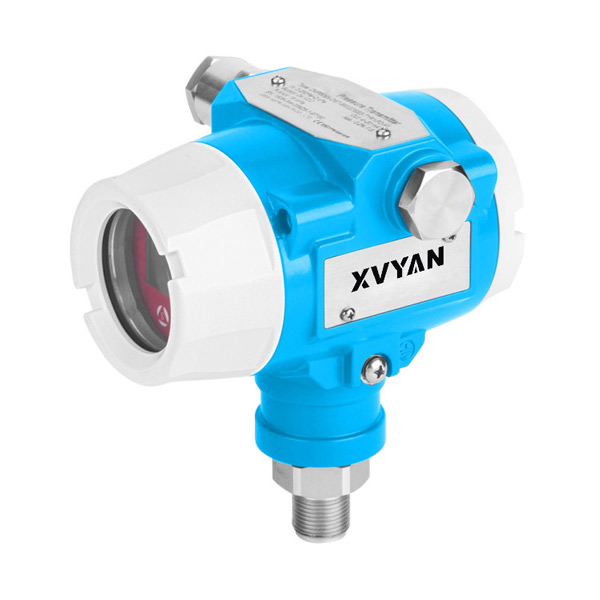

Industrial Pressure Transmitter XY-PT305M

High performance pressure transmitter for industry applications
Measuring range 2kPa-40MPa, Output signal: 4-20mA, 4-20mA+HART, ±0.1% URL accuracy and IP 67 protection can be used in Process control system,Petroleum industry, Chemical industry and Electric power

Typical Feature

Measuring range: 2kPa-40MPa
Output signal: 4-20mA, 4-20mA+HART, customer
Reference accuracy: ±0.1% URL, optional ±0.075% URL
Stability: ±0.2% URL/ 5 years
Diaphragm: SUS316L, Hastelloy C
Media temperature: -40-120℃
Protection class: IP67
Process connection: M20*1.5(M), G1/2(M), G1/4 (M), 1/2-14NPT(M), etc
Approvals: IECEx, NEPSI, RoHS, CE(special requirement)

Industrial Pressure Transmitter XY-PT305M Brief Introduction

PT305M monosilicon pressure transmitter is a high performance pressure transmitter with international leading technology meticulously designed by XVYAN instrument, using the world's most advanced monosilicon pressure sensor technology and patent encapsulation technology. Monosilicon pressure sensor locates on the top of the metal body and stay away from the medium interface to realizesmechanical isolation and thermal isolation. Glasssintering sensor wire realizes high strength electricalinsulation of metal base and improves the capability offlexibility of electronic circuit and transient voltageresistance protection. All these original encapsulation technologies enable PT305M monosilicon industrial pressure transmitter to easily cope with extreme chemical occasion and mechanical load, and own strong resistance to EMI, sufficient to respond to the most rigorous industrial environment applications, which are the genuine invisible instruments .
