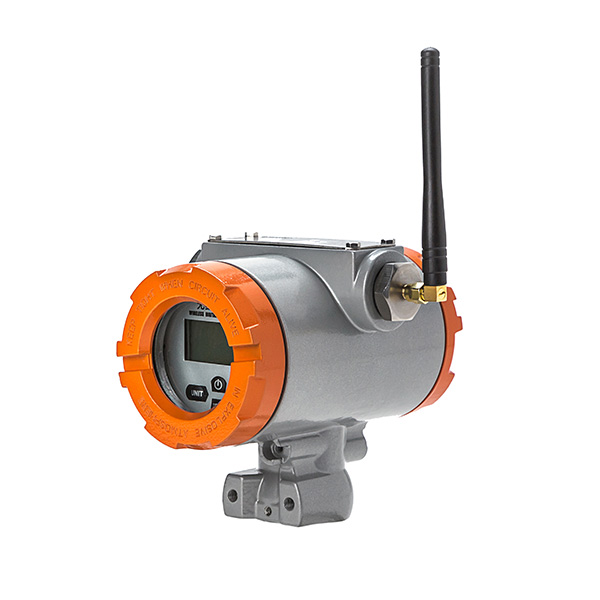

Digital Pressure Gauge XY-PG270

Wireless Lora/NB-iot; Explosion-proof Shell; Upload Record To Cloud Servers
Casting aluminum shell and stainless-steel joint, Standard Accuracy 0.5%FS; large-sized LCD display, suitable to Fire Protection System and Water Supply System

Typical Feature

  • Wireless transmission GPRS/LORa/NB-iot options
  • Remote configuration or key setting IP address
  • Alarm point, upload frequency and so on (GRPS/NB)
  • Equipped with gateway, efficiency pressure monitoring in LAN(LORa)
  • Multiple Pressure Unit Switch
  • Low power design, optional battery and power supply
  • Accuracy level: Pressure 0.5% and 1.0%
  • Pressure range -0.1~0...0.01…0.1…1.6…10…200MPa
  • SS304 shell and joint, 316L diaphragm

Digital Pressure Gauge XY-PG270 Brief Introduction

XY-PG270 Wireless Digital Pressure Gauge is low power consumption and wireless output, wireless communication protocol can be optional GPRS, LORa-IoT, NB-IoT. The welding pressure sensor was built-in to display accurately in real time, at the same time it has high precision and long-term stability; casting aluminum shell and stainless-steel joint with good shock resistance, thus it is suitable to measure gas, liquid, oil and others medium without corrosion for stainless steel.

These series Digital Pressure Gauge is equipped with large-sized LCD display, it's easy to read data on site, at the same time upload record to cloud servers, upload rate is adjusted from 1 minute to 24 hours, preset high-limit and low-limit pressure alarm point, it will trigger to update single by event and timing.

It's a real perfect wireless digital pressure gauge for fire water pipe network, fire alarm station, fire pump room, water supply, petrochemical and others filed required remote monitoring. It is an alternative for the system involved by pressure transmitter, transmission module and power distribution box, consider its small size, convenient installation and cost-effective.

There are three combinations about power supply: lithium battery power supply; lithium battery& power supply, Xuyan recommend lithium battery& power supply, it is the safest solution once city power was cut off, the battery support 10K times data upload.

Digital Pressure Gauge XY-PG270 Specification

Model

XY-PG270

Vacuum Pressure Range

0~-100KPa

Absolute Pressure Range

0…160…250…400KPa;0...1Mpa.

Composite range

(-0.1~0.1)MPa  (-0.1~0.25)MPa (-0.1~0.4)MPa  (-0.1~0.6)MPa (-0.1~1.0)MPa  (-0.1~2.5)MPa
(-2.5~2.5)(-5~5)kPa   (-10~10)kPa   (-25~25)kPa   (-50~50)kPa

Gauge Pressure Range

(0~160)kPa (0~250)kPa  (0~400)kPa (0~600)kPa (0~1)MPa (0~1.6)MPa ...(0~60)MPa

Micro-pressure Range

(0~2)kPa  (0~5)kPa   (0~10)kPa (0~25)kPa  (0~50)kPa  (0~100)kPa

High pressure Range

(0~100)MPa  (0~160)MPa  (0~200)MPa

Pressure Type

Gauge Pressure Test ,Absolute Pressure Test, Vacuum Pressure Test

Dimension

76mm

Overload Capacity

≤10MPa  200%; >10MPa 150%

Measurement Medium

Gas or Liquid with Compatibility of  SS 304

Accuracy Level

0.5%FS  1.0%FS

Long-Term Stability/Year

Typical: ±0.25% FS

Operation Temperature

-20~60℃ ;-20_200 are customized

Compensation Temperature

0~60℃

Working Humidity

<85%

Sample Frequency

1-600Second/time available

Upload Rate

1-1440 Minutes available

Display

4 digits LCD, white backlit display

Alarm Point Set

High & Low alarm points can be set within range

Certifaction

CE,EXIBII CT4

Power Supply

3.6V by lithium Battery or 12/24V power options


PDF Download

File Name Online reading File download
Digital Pressure Gauge XY-PG270

More details for XY-PG270, please Contact Us.
