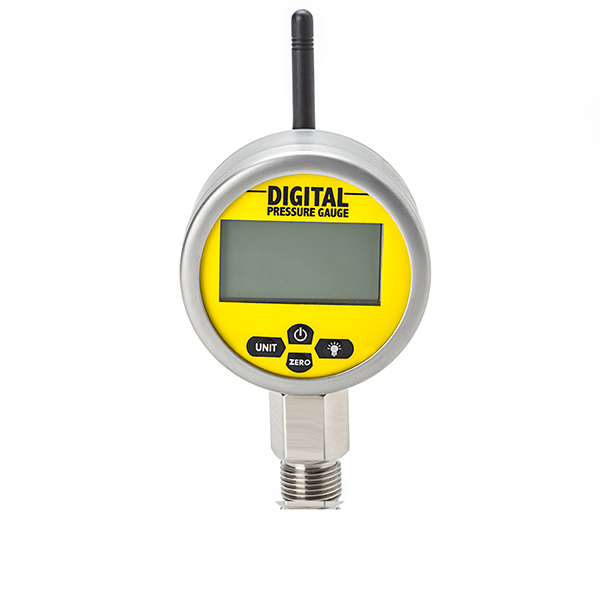

Digital Pressure Gauge XY-PG280G

4-Digits LCD; Wireless LORa/NB-iot Protocol; Φ80mm Dial
SS304 shell, Standard Accuracy 0.5%FS, Wireless communication single to solve the challenging work condition that is hard check data on site

Typical Feature

  • Wireless Transmission GPRS/LORa/NB-iot options
  • Stainless steel 304 shell, diameter 80mm
  • 4-Digits LCD with white backlight
  • Low power design, 24V power supply
  • Accuracy level: Pressure 0.5%FS;
  • Pressure range -0.1~0...0.01…0.1…1.6…10…160MPa

Digital Pressure Gauge XY-PG280G Brief Introduction

XY-PG280G Wireless Digital Pressure Gauge is low power consumption and with wireless output.The wireless communication protocol is optional GPRS, LORa-IoT, NB-IoT. The high precision pressure sensor was built-in to display accurately in real time, at the same time it has high precision and long-term stability; stainless-steel shell and joint with good shock resistance, thus it is suitable to measure gas, liquid, oil and others medium without corrosion for stainless steel, especially for the work condition is hard to check pressure on site frequently.

These series digital pressure gauge is equipped with large-sized LCD display, it's easy to read data on site, at the same time upload record to cloud, upload rate is adjusted from 1 minute to 24 hours.

It's a real perfect Wireless Digital Pressure Gauge for Fire Water Pipe Network, Fire Alarm Station, Fire Pump Room, Water Supply, Petrochemical and others filed required Remote Monitoring. It is an alternative for the system involved by Pressure Transmitter, Transmission Module and Power Distribution Box, consider its small size, convenient installation and cost-effective. They powered by 24VDC power supply.

Digital Pressure Gauge XY-PG280G Specification

Model XY-PG280G
General Pressure Range 0~0.2…0.6…1…2.5…10…25…40…60…100…160MPa
Micro-pressure Range (0~5…10…25…40…60…100) KPa
Composite range (-0.1~0…0.1…0.25…0.4…0.6…1…1.6…2.5) MPa
(-10~10; -25~25; -40~40; -60~60; -100~100) KPa
Pressure Type Gauge Pressure Test, Vacuum Pressure Test
Dimension Φ80mm; Thickness 48mm
Overload Capacity 150% (>10MPa); 200% (≤10MPa)
Measurement Medium Gas or Liquid with Compatibility of SS 316
Accuracy Level 0.2%FS;0.4%FS;0.5%FS;
Long-Term Stability/Year Typical: ±0.2% FS
Operation Temperature -20~70℃; -20_150 is customized
Compensation Temperature 0~60℃
Working Humidity <85%
Display 4 digits LCD, white backlit display
Alarm Point Set High & Low alarm points can be set within range
Power Supply 24VDC, 220VAC are optional
