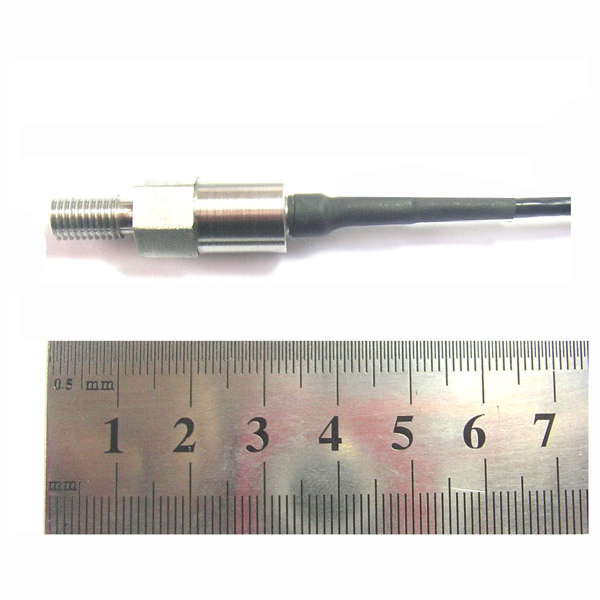

Pressure Transmitter XY-PTMT200

Small Size Mounted Type, Minimum M5*1, Pressure Range0~8MPa
Small size, IP65 or IP67 Ingress protection; used to the work condition is limited about test point size, or need keep flow distribution, offer customized types

Typical Feature

  • 3mm diameter thin design
  • High-precision force sensitive chips with maximum accuracy 0.25% FS, 0.5% FS
  • Temperature stability index 0.02%/FS/ C
  • Wield measurement field, even corrosion, easy to crystallize the medium.
  • Stainless Steel material with fully sealed structure
  • Customized structure diversification is available.

Pressure Transmitter XY-PTMT200 Brief Introduction

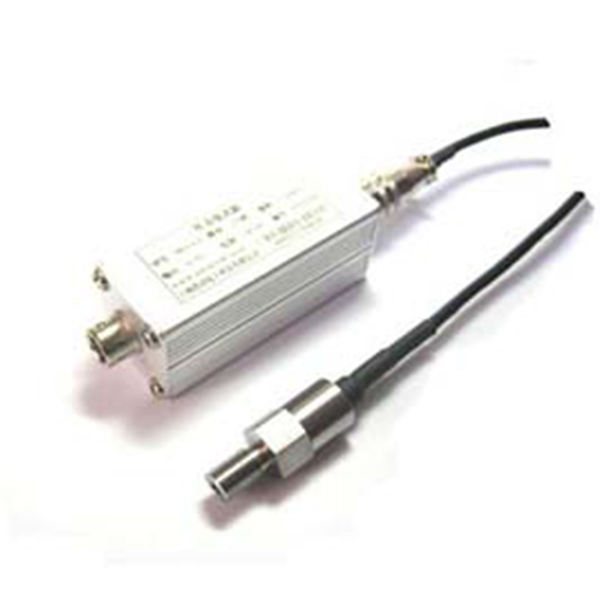

XVYAN™ XY-PTMT200 Mounting Type Pressure Transmitter has minimum M5 thread for easy installation, special design and precision machining technology make them with excellent dynamic and static qualities, with stainless steel shell and laser-welded construction, IP65 or IP67 Ingress protection, the ultrathin and small size can be used to specific environment, no interaction of flow field and Safety explosion-proof to withstand harsh rugged application environments, besides the size and range can be customized by customs'application requirement, requirements high precision, fast response, small size, light-weight, stable and reliable, strong overload capacity; designed for most medium in industry, such as Air, Oil, Water and other fluid; 4~20mA or 0~5VDC standard electrical signal output, measure range: 0-5 KPa,0-100 KPa,0-800KPa.

Thoughtful specialized electric circuit design, it's easy to install in microprocessor intelligent control system; ultra-high precision absolute pressure calibration equipment calibration, accuracy 0.2%; 0.5%; temperature stability index can be increased to 0.02%/FS/ by using sensor temperature self-compensation and specialized circuit debugging.

Pressure Transmitter XY-PTMT200 Specification

100 200 300
Gauge Pressure Range 0-5KPa…100KPa…1000MPa 0-5KPa…100KPa…8000MPa Air pressure 0-20KPa, 0-200KPa
Others 0-1MPa…10MPa…50MPa…100MPa
Pressure Type Gauge Pressure Test
Measurement Medium Gas or Liquid with Compatibility of  SS 304 ,SS316 or Silicon
Accuracy  0.2%FS   0.5%FS additional conditioning circuit
Long-Term Stability/Year ±0.2%FS/Year
Zero Temperature Trift Typical: ±0.02%FS/℃;  Maximum ±0.05%FS/℃
Sensitivity Temperature Drift Typical: 0.02% FS / ℃;The biggest: 0.05% FS / ℃
Overload Pressure  200%
Operation Temperature -20~85℃
Compensation Temperature -20 ~ 80℃
Environmental Temperature -40 ~ 120℃
Power Supply 5VDC
Signal Output mV;  after conditioning 4~20mA, 0-5V after
Load Resistance ≤(U-6.5)/0.02A Ω
IP Protection Class IP65; IP67

Performance Parameter
Performance Parameter A B C D
Non-linear/±%FS 1.00 0.50 0.20 0.1
Non-redundant, hysteria /±%FS 0.20 0.15 0.10 0.04
Zero temperature coefficient/X10-4/oC.FS 5.00 3.00 2.00 1.00
Sensitivity temperature coefficient/X10-4/oC.FS 5.00 3.00 2.00 1.00
Zero time drift/%FS/8h 0.20 0.15 0.10 0.10
Accuracy%FS 1.00 0.50 0.25 0.15

Mode Size
XY-PTMT100 Φ3mm-Φ8mm
XY-PTMT200 M5*1-M10*1
XY-PTMT300 Φ10*5mm-Φ30*10mm
